Section Plot

Click ‘Section Plot’ button to open ‘Section Plot’ window. Select ‘Var’, ‘DrawType’ and ‘PlotDims’ and set the dimensions and then press ‘Draw Data’ button, section plot will be plotted. For this kind of plot, there are two variable dimensions.

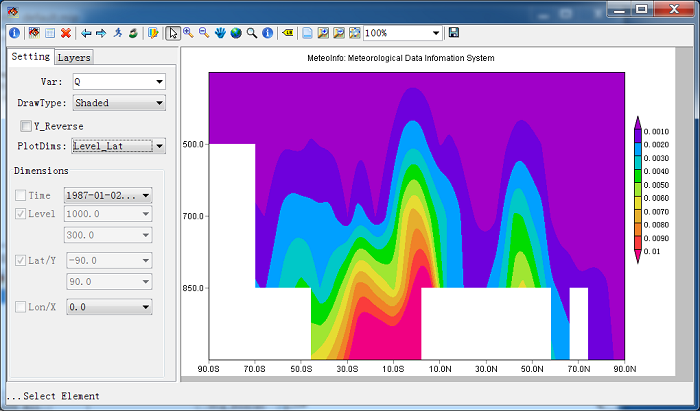

../../../_images/sectionplot_shaded.png

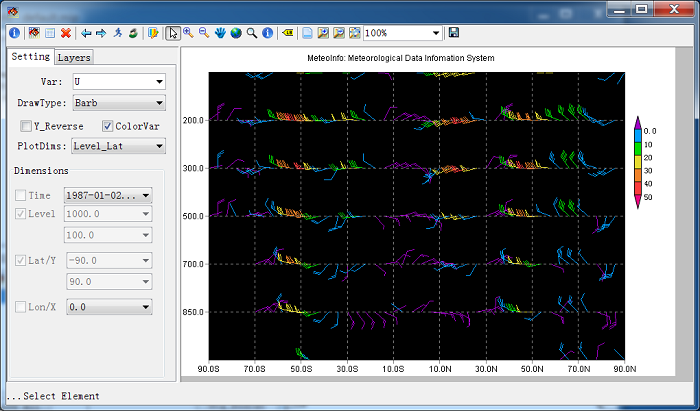

Wind profile plot.

../../../_images/sectionplot_barb.png
