antialias¶

antialias(b=True)

Set figure antialias or not.

Parameters:	b – (boolean) Set figure antialias or not. Default is `False` .

Example:

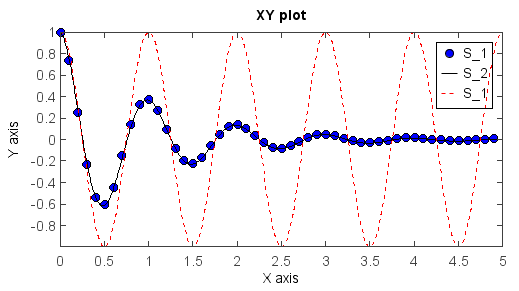

Before antialias:

def f(t):
    return exp(-t) * cos(2*pi*t)

t1 = arange(0., 5., 0.1)
t2 = arange(0., 5., 0.02)
plot(t1, f(t1), 'bo', t2, f(t2), 'k')
plot(t2, cos(2*pi*t2), 'r--')
title('XY plot')
xlabel('X axis')
ylabel('Y axis')
legend()

../../../../_images/xy_plot1.png

After antialias:

>>> antialias()

../../../../_images/xy_plot_antialias.png
