colorbar

colorbar(layer, **kwargs)

Add a colorbar to a plot.

Parameters:

• layer – (MapLayer) The layer in plot.
• cmap – (string) Color map name. Default is None.
• shrink – (float) Fraction by which to shrink the colorbar. Default is 1.0.
• orientation – (string) Colorbar orientation: vertical or horizontal.
• aspect – (int) Ratio of long to short dimensions.
• fontname – (string) Font name. Default is Arial .
• fontsize – (int) Font size. Default is 14 .
• bold – (boolean) Is bold font or not. Default is False .
• extendrect – (boolean) If True the minimum and maximum colorbar extensions will be rectangular (the default). If False the extensions will be triangular.
• extendfrac – [None | ‘auto’ | length] If set to None, both the minimum and maximum triangular colorbar extensions with have a length of 5% of the interior colorbar length (the default). If set to ‘auto’, makes the triangular colorbar extensions the same lengths as the interior boxes . If a scalar, indicates the length of both the minimum and maximum triangle colorbar extensions as a fraction of the interior colorbar length.
• ticks – [None | list of ticks] If None, ticks are determined automatically from the input.

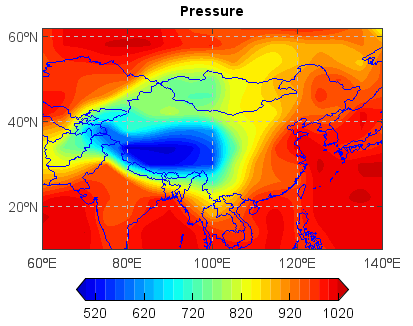

Example:

f = addfile('D:/Temp/GrADS/model.ctl')
psv = f['PS']
ps = psv[0,[10,60],[60,140]]
axesm()
mlayer = shaperead('D:/Temp/map/country1.shp')
geoshow(mlayer, edgecolor=(0,0,255))
#layer = contourm(ps, 20)
layer = contourfm(ps, 20)
title('Pressure')
yticks(arange(20, 61, 20))
grid()
colorbar(layer, orientation='horizontal', extendrect=False, shrink=0.8, aspect=12)
